Castro GTX vs Castro Edge

Castrol GTX vs. Castrol Edge: A Comparison Guide

“Castrol Edge or Castrol GTX?” is the not-so-age-old question that has been circulating around auto forums so much that you would think both were part of the Cola Wars. Except well, both are under the same brand and you shouldn’t drink either of them.

The truth of the matter is that both of these Castrol oils are formidable in their own right, though only one can reign supreme once you put them in your particular vehicle, let alone compare their specs side-by-side.

So as experienced consumers of Castrol and many other oil brands, we’ll have you know if either Castrol Edge or Castrol GTX should be flowing through your ride’s “bloodstream” over the next several thousand miles. So read on!

What’s the difference between Castrol GTX and Edge?

Castrol GTX is a semi-synthetic motor oil available in 10W-20, 10W-30, and 20W-50 viscosity grades. It is suited for both old and new turbo or non-turbo engines.

Castrol Edge is a fully synthetic motor oil available in a wider range of viscosity grades. It is suited for modern car and truck engines.

The short summary we provided above only gives you a general idea of what you can expect out of the two motor oils from Castrol.

While Castrol Edge and Castrol GTX are both great engine oil options from the same renowned oil manufacturer, there are more specific differences among the two worth talking about so that you can pick out the one that’s best suited for your vehicle.

Castrol Edge vs. Castrol GTX Comparison Chart

SpecificationsCastrol EdgeCastrol GTX
Oil TypeFully synthetic motor oil blendSemi-synthetic motor oil blend
TechnologyFluid Titanium Technology and TriShield TechnologyFluid Titanium Technology

Viscosity Grades
Compatible Engine TypesModern gasoline/petrol engines and diesel engines(turbo or non-turbo)Older gasoline/petrol engines and turbocharged diesel engines

Vehicle Applications
Suitable for any modern and performance-oriented car or truck modelSuited for any older gasoline car or turbocharged diesel car, but may also be used for modern ones.

Mileage Interval

10,000 to 15,000 miles
5,000 to 7,500 miles or 6 months (whichever of the two comes first)
Suitability(Weather/Season)Suitable for both hot and cold weather (summer/winter)More suited for hot weather conditions
CostAbout $26(5W-30 5qt)About $23 (10W-30 5qt)

Six times stronger in protecting the engine against sludge compared to the industry standardEfficient in protecting the engine from sludge buildup and making it last longer
ILSAC CategoryGF-6GF-6

Overview of Castrol Edge vs. Castrol GTX



One of the biggest differences in specs between Castrol Edge and Castrol GTX is that the former is a fully synthetic blend, whereas the latter is only semi-synthetic. But what does this actually mean?

Fully synthetic engine oils such as Castrol Edge are formulated by using artificial or “man-made” chemical ingredients, which are refined and purified down to each individual molecule that comprises the compounds.

The process that fully synthetic oil goes through allows it to have fewer impurities compared to conventional mineral oil, which enables it to provide better engine protection and reduced sludge buildup.

On the other hand, Castrol GTX is just partly synthetic or “semi-synthetic”, which means that it is considered a premium conventional oil that has some of the added benefits of fully synthetic oil while being cheaper.

What type of oils are Castrol Edge and GTX?

Castrol GTX is a semi-synthetic oil blend mainly available in 10W-20, 10-30, and 20W-50 viscosity, while Castrol Edge is fully synthetic and available in a wider range of viscosity grades.

Both Castrol Edge and Castrol GTX meet ILSAC GF-6, API SN Plus, API SN, and API SP standards.

When it comes to the types of engine oils, one of the first things that differentiate them is the “base” that they use, or in other words, the main ingredients that make up the oil itself.

Among the two types of oil we’ve been discussing, Castrol Edge is the only one that uses a fully synthetic base, meaning that its blend has been artificially and chemically engineered down to the molecular level.

What type of oils are Castrol Edge and GTX

This is why fully synthetic oils are often described as having fewer impurities, which leads to them being the superior oil when it comes to providing lubrication and protection.

Castrol GTX isn’t that far off though, as it still uses a partly synthetic or “semi-synthetic” base. However, it’s still mainly classified as premium conventional oil because of its inclusion of mineral oil.

What type of oils are Castrol Edge and GTX

Now mineral oil is closer to what you can actually find in nature, more specifically the “crude oil” or “petroleum” that’s found underground. However, the difference is that mineral oil has already been heavily refined for use in engines.

Thus, Castrol GTX being “semi-synthetic” means that it is simply a cross between a fully-synthetic oil and pure mineral oil. However, this means that it’s not as free from impurities as fully synthetic oil, making it not perform quite at the same level.

Vehicle Applications

Both Castrol GTX and Castrol Edge can actually be used in a wide range of everyday vehicles, but there are still some slight differences in where they are suited best.

For instance, Castrol Edge is recommended for more modern vehicles with either a gasoline engine or a diesel engine. It’s also well suited for performance-oriented vehicles such as sports cars.

Vehicle Applications

Castrol GTX can also be used for both modern gasoline and diesel vehicles, but it’s also suited for older vehicle models with engines that are not as advanced as more modern ones.

Vehicle Applications

This is why Castrol GTX even comes with a “High Mileage” version, which is recommended for use in vehicles that have already crossed the 75,000-mile (121,000 km) mark.

Another difference in applications between the two oils is that Castrol GTX is specifically suited for turbocharged diesel engines. The manufacturer does not mention using it for turbocharged “gasoline” engines.

Mileage Intervals

Mileage Intervals

When you opt for the fully-synthetic Castrol Edge, the recommended mileage interval is about 10,000 to 15,000 miles, while the semi-synthetic Castrol GTX is recommended to be changed every 5,000 to 7,500 miles or 6 months, whichever comes first.

It’s also worth noting that the recommended mileage interval can also vary depending on which viscosity grade that you opt for and even the ambient conditions of your location.

For instance, Castrol’s warranty for ASEAN countries states that if you were to specifically use Edge 0W-20, 5W-30, 5W-40, and 10W-60, then the recommended interval would be as early as 10,000 km (6,000 miles) or 6 months.

Because of this, it’s also important to consider which viscosity grade is most suitable for you, as this can also affect how frequent your oil changes are going to be.

As for the “high-mileage” versions of the Castrol Edge or Castrol GTX, these refer to oils that are suitable for use in vehicles that already clocked at least 75,000 miles on the odometer, and not that they have a 75,000-mile interval (which is impossible).

Regardless of which one you go for, you can expect both Castrol Edge and Castrol GTX engine oils to last significantly longer than conventional engine oils that are derived from pure mineral oil, which only lasts an average of 3,000 to 5,000 miles.


Quoted as the brand’s “strongest motor oil”, Castrol Edge is best suited for more modern or performance-oriented gasoline/petrol engines and diesel engines.

Furthermore, you can just about use Castrol Edge for any kind of modern car make and model, even those equipped with turbochargers.

With Castrol Edge’s “Fluid Titanium Technology”, the fully synthetic oil blend is for those that want the most performance and protection for their modern engines, which are capable of producing more pressure than older engines.

The semi-synthetic Castrol GTX would still be a good choice for vehicles equipped with modern engines, but it also shines in extending the life of older engines.

However, when it comes to engines fitted with a turbo, Castrol GTX is only suitable specifically for turbodiesel engines, as there is no mention of it being applicable for turbocharged gasoline engines as well.


Simply put, Castrol Edge is more expensive than Castrol GTX for the fact that it’s fully synthetic versus the latter’s semi-synthetic blend.

You can typically find a 5-quart bottle of Castrol Edge for $26 or more online, while a 5-quart bottle of Castrol GTX is about $23 on average online.

In general, fully synthetic oil blends are the most expensive types of oil due to them being purely man-made and refined more heavily compared to other types, which ultimately results in better lubrication and protection for your engine.



According to Castrol’s description, Castrol Edge fully synthetic motor oil is six (6) times stronger when it comes to preventing engine wear and sludge buildup compared to the industry standards for motor oil.

Castrol Edge is also known to be highly resistant when exposed to high-temperature conditions that can typically result in oil thickening. This makes it a very efficient engine oil even when under pressure.

In comparison, the semi-synthetic Castrol GTX, despite not being quite at the same level as Castrol Edge, still demonstrates solid efficiency when it comes to protecting your engine and reducing sludge buildup, even in the case of older vehicles.


Both Castrol Edge and Castrol GTX oils have one thing that they’re exactly identical in, which is that both of them adhere to the same ILSAC (International Lubrication Specification Advisory Committee) and API (American Petroleum Institute) standards.

Castrol Edge and Castrol GTX are classified as ILSAC “GF-6” and also meet API standards such as SN Plus, SN, and SP.

In a nutshell, motor oil that’s classified as “GF-6” passes the next ILSAC standard motor oils made for passenger cars, which was set on May 1, 2020.

API SN Plus, API SN, and API SP, however, are all subcategories under the American Petroleum Institute for motor oils that can be used for turbocharged engines, 2020 and older engines, and 2010 and older engines, respectively.

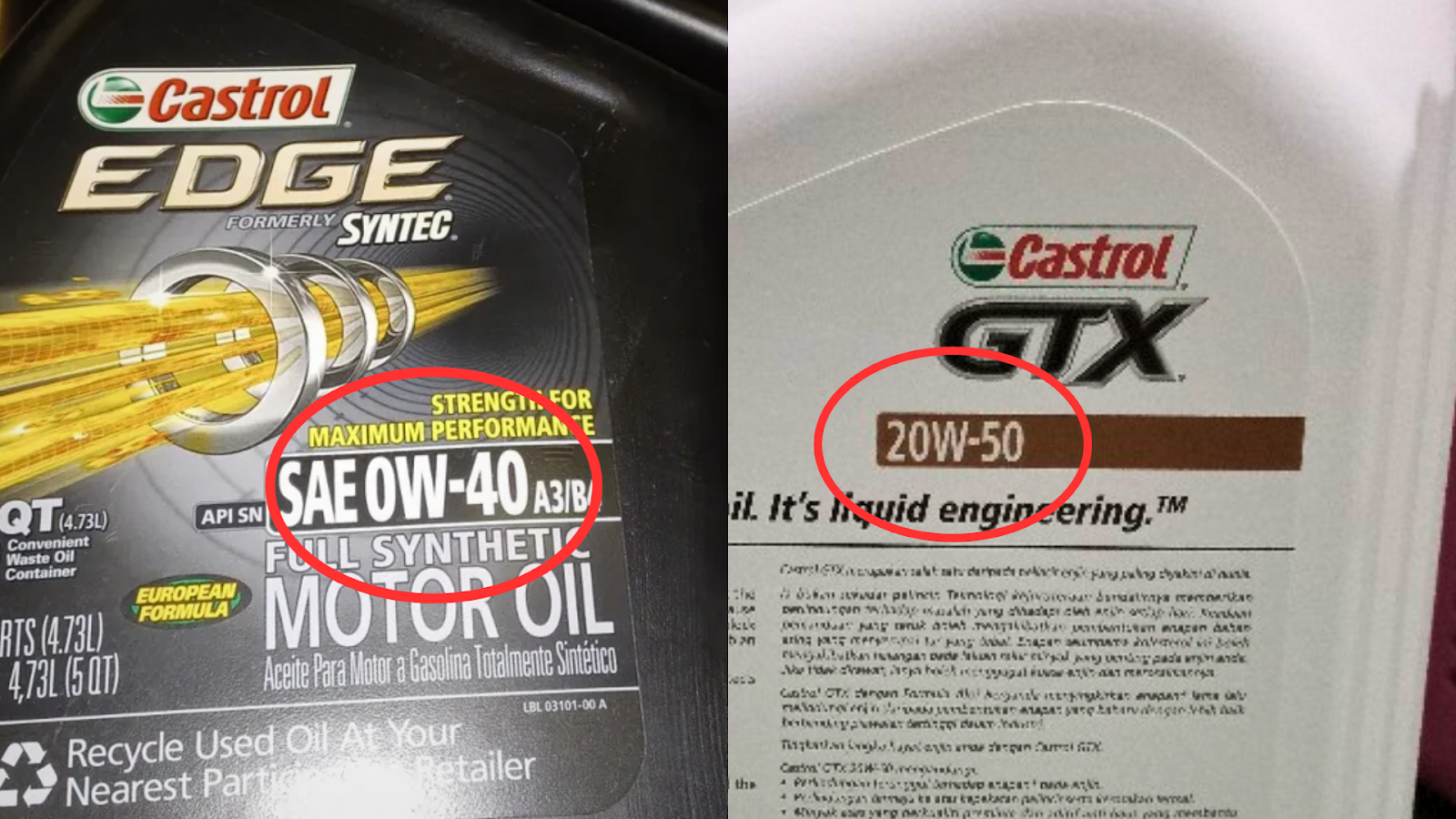

Castrol Edge vs. Castrol GTX Viscosity Grades

Castrol Edge is available in a wide variety of viscosity grades such as 0W-16, 0W-20, 5W-20, 5W-30, 10W-30, and 10W-40.

Castrol GTX is mainly available in viscosity grades such as 10W-20, 10W-30, and 20W-50, though other areas may also have other grades (e.g. 15W-40) available as well.

Castrol Edge vs. Castrol GTX Viscosity Grades

Castrol makes several different viscosity grades for both the Castrol Edge and Castrol GTX motor oil depending on the application and the ambient conditions of your area.

The lower the first number is, the lower the viscosity level. Hence, a 0W-16 oil will flow easier in colder temperatures compared to a 5W-20 oil.

The “W” (Winter) after the first number simply refers to the oil’s viscosity when the engine is cold, while the last two digits are the viscosity when the engine has already been warmed up.

Among the two, Castrol Edge has a wider range of available viscosity grades that start from as low as “0W-16” all the way to “10W-40”.

Castrol GTX is more limited when it comes to viscosity grades. It is typically sold in 10W-20, 10W-30, and 20W-50, though depending on the area, you may be able to get 15W-40 as well.

The good news is that compared to Castrol Edge, Castrol GTX has the thicker 20W-50 option, which is more suited for hotter climates or heavy-duty tasks where engine oil gets thinner.

Additives in Castrol Edge and Castrol GTX

Both Castrol Edge and Castrol GTX use additives such as detergents, phosphorous-based antioxidants, anti-wear agents, viscosity index improvers, and rust and corrosion inhibitors.

The use of additives for any engine oil manufactured by Castrol is primarily for enhancing the base oil itself, reducing any unwanted properties of the base oil, and adding new properties to improve its performance under certain conditions.

Castrol Edge vs. Castrol GTX Engine Performance Comparison

Sludge Reduction

Sludge Reduction

Sludge reduction is one of the most important things to consider when choosing any motor oil, and luckily, Castrol Edge is the brand’s top-performing oil in this department.

As a fully synthetic oil blend, Castrol Edge is primarily designed to prevent the production and buildup of sludge and any other similar deposits inside the engine.

This is made possible by Castrol Edge’s Fluid Titanium technology, TriShield technology, detergents, and rust and corrosion inhibitors that serve as its additives.

In comparison, Castrol GTX still contains the same Fluid Titanium technology in edge as well as the same exact additives.

However, let’s not forget that Castrol GTX is only a semi-synthetic blend. While it will still provide you with a good amount of protection against engine sludge, it’s not quite on the same level as Castrol Edge.

Engine Wear Reduction

Another important task of engine oil is to reduce the wear and tear of different engine components, which is something that both Castrol Edge and Castrol GTX do pretty well.

Whichever of the two you choose, Castrol’s additives for its base oils include anti-wear agents that both clean sludge and reduce friction between metal components.

But of course, since Castrol Edge is the more premium, top-spec, and fully synthetic option, it’s able to perform this task six times better than the industry standard for motor oils, according to the oil manufacturer’s description.

Engine Seal Protection

One specific area that Castrol engine oils are designed to protect is the engine seal, which “seals” and protects the engine from any foreign objects that can either hinder its performance or cause damage.

Again, Castrol’s inclusion of Fluid Titanium technology and additives such as cleaning detergents for both Castrol Edge and Castrol GTX also add a layer of protection for the engine seal.

But yet again, Castrol Edge gains an “edge” over Castrol GTX due to its TriShield deposit technology, which is able to capture small deposit particles before they can even turn into sludge and cause problems for your engine seal and other components.

Protection Against Oil Burn-Off

Protection Against Oil Burn-Off

When an engine gets hot enough, it can start burning and consuming more oil than usual, causing your oil levels to drop below the normal reading. This is why it’s also important to consider oil types that can protect you from this.

In particular, Castrol Edge is one of the best oils when it comes to performing under high engine temperatures, and this is thanks to its combination of Fluid Titanium Technology and antioxidants.

Castrol Edge’s own mix of Fluid Titanium Technology and antioxidants allows it to prevent oil from evaporating while the engine is running at higher temperatures, thereby protecting the engine from oil burn-off.

Castro GTX also uses the same type of technology and additive to prevent oil molecules from evaporating under high temperatures, making it still a solid choice when it comes to oil burn-off protection.

Fuel Economy

An engine that’s well protected from sludge buildup, excess wear, and excess oil consumption will be able to perform optimally and run efficiently with the fuel that it has.

As discussed earlier, both Castrol Edge and Castrol GTX are made with Fluid Titanium Technology and a blend of other additives that protect the engine from sludge and wear.

Due to the technology and additives that go into Castrol motor oils, the engine will be able to achieve the demands of the driving conditions without putting itself under too much pressure and consuming too much fuel.

Catalytic Converter Performance

Catalytic Converter Performance

Your vehicle’s catalytic converter can also be affected by the type of oil that you use, as any byproduct of the engine’s combustion process (including the phosphorus from oil) will eventually end up in the catalytic converter.

If the oil that you use produces too much phosphorus, it can prematurely wear out the catalytic converter over time. But the good news with Castrol Edge and Castrol GTX is that they are both formulated to contain lower phosphorus levels.

More specifically, Castrol Edge and Castrol GTX “High Mileage” are your best bet when it comes to low phosphorus levels, as they are both liquid-engineered with Castrol’s “Phosphorous Replacement Technology”.

Oil Change Intervals/Frequency

Oil Change Intervals/Frequency

Castrol Edge fully-synthetic motor oil has a recommended interval of 10,000 to 15,000 miles depending on your driving habits and your vehicle’s recommendations.

Castrol GTX semi-synthetic motor oil has a shorter recommended interval of 5,000 to 7,500 miles or 6 months, whichever comes first.

Castrol Edge or GTX: Which one should you choose?

Choosing between Castrol Edge and Castrol GTX really depends on a lot of factors, such as the type of vehicle you have, whether it’s an older or newer vehicle, and even your budget.

But if we go back to the specs, the fully-synthetic Castrol Edge beats the semi-synthetic Castrol GTX in just about every aspect aside from the price, such as providing better protection from sludge and wear and offering better performance overall.

However, this isn’t to downplay Castrol GTX, as it is still a strong contender even as a premium conventional motor oil. If you own an older vehicle model, then Castrol Edge may be unnecessary or even not applicable and Castrol GTX would suffice.

Frequently Asked Questions (FAQs)
